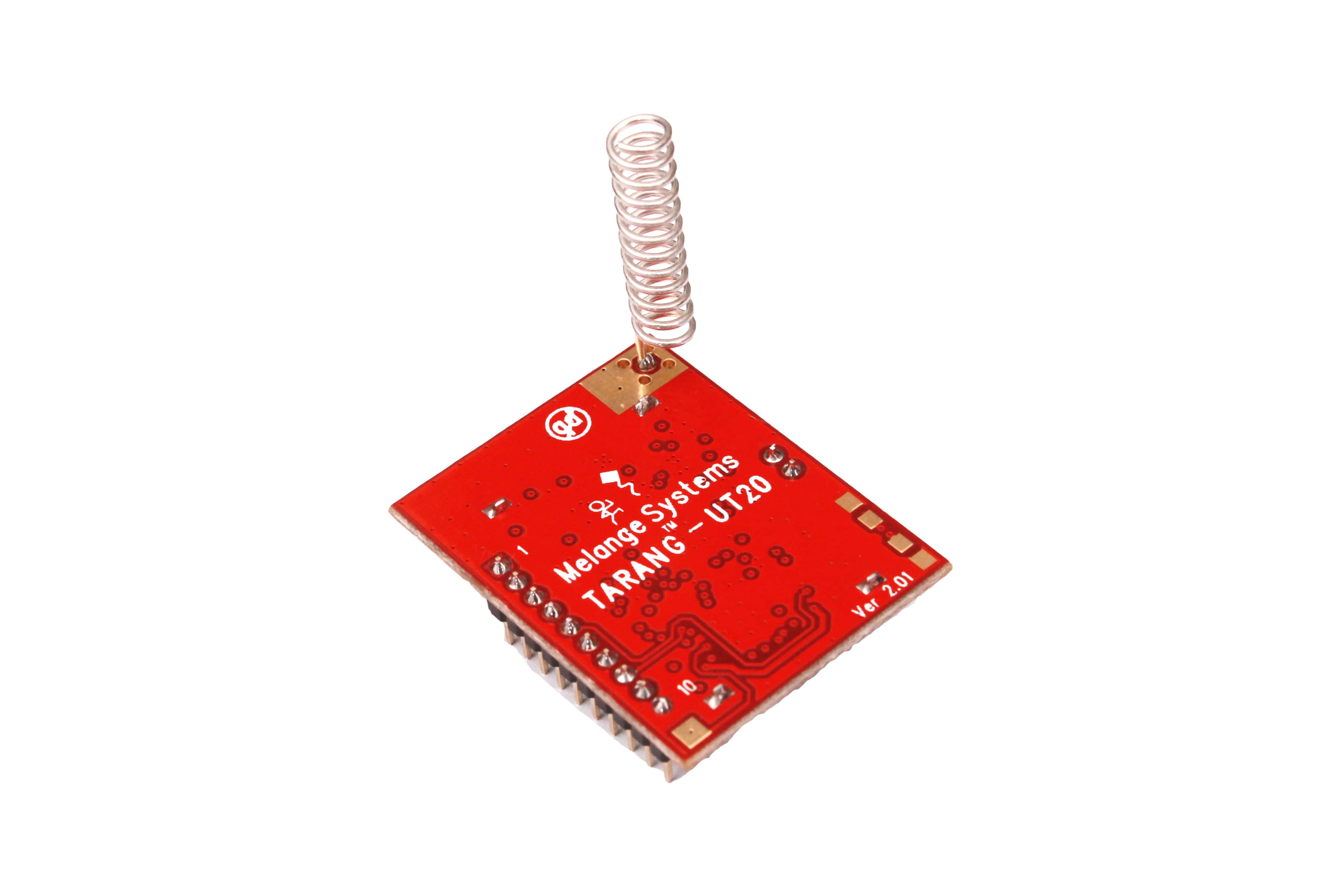

Tarang UT20 Module pic

TarangMini Series

Melange Systems UT20 series 6LoWPAN-conformant modules are designed to address a wide range of Sub-GHz wireless communication requirements across industrial and consumer electronics applications. The modules operate in the 865 MHz to 867 MHz frequency band and deliver up to 19 dBm output power

GENERAL
Frequency Band863 – 867 MHz
ModulationGFSK
Transmit PowerUp to +19 dBm
RF Data Rate50 Kbps
Supply Voltage3.3V to 3.6V
Operating Temperature-40 to +85°C
Transmit Mode125 mA
Receive Current50 mA
Number of Channels9
Antenna OptionsSpring/External
Network Topologies6LoWPAN, TarangNet, PrettyMesh
